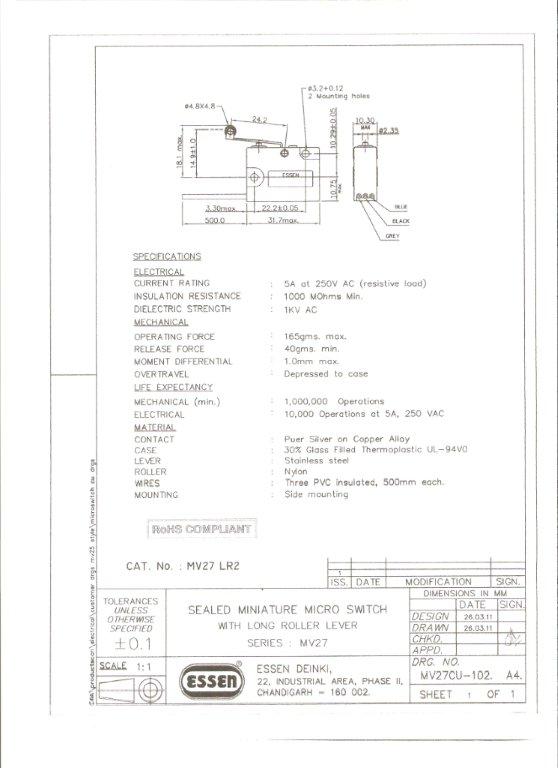

Essen Deinki 5a prewired (0.5m) Microswitch with 24mm long roller lever actuator.

Specifications:

Electrical

• Current Rating: 5A at 250V AC (resistive load)
• Insulation Resistance: 1000 M0hms min.
• Dielectric Strength: 1KV AC

Mechanical

• Operating Force: 165gms max.
• Release Force: 40gms min.
• Moment Differential: 1.0mm max.
• Overtravel: Depressed to case

Life Expectancy

• Mechanical (min.): 1,000,000 operations
• Electrical: 10,000 operations at 5A, 250V AC

Material

• Contact: Pure silver on copper alloy
• Case: 30% glass-filled thermoplastic  UL-94V0
• Lever: Stainless steel
• Roller: Nylon
• Wires: 3 PVC insulated, 500mm each
• Mounting: Side

RoHS Compliant

IP67
